Cov ntaub ntawv khoom

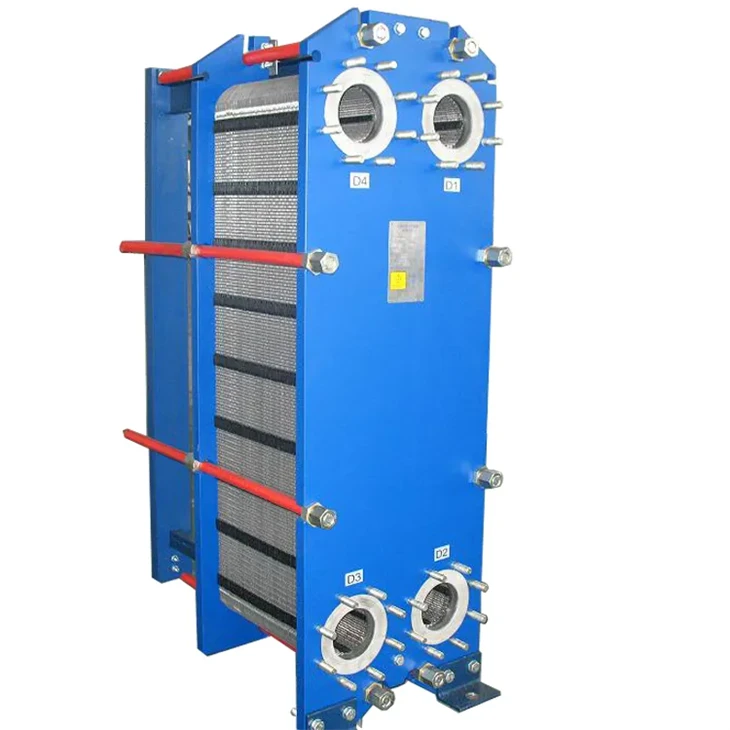

| Khoom Qhia ntawm gasketed phaj kub exchanger | |
| Hom | Exheat |
| Cov khoom siv phaj | Titanium / Stainless hlau {{0}}.5mm 0.6mm 0.7mm 0.8mm 1mm |
| Gasket khoom | CR NBR HNBR EPDM HEPDM VITON FKM Silicone |
| Cov khoom siv ncej | Painted carbon hlau los yog stainless hlau |
| Xim ntawm ncej | Xiav los yog Customized xim |
| Hom kev sib txuas | Flange los yog Xov |
| Flange txheem | ANSI ASME BS BA JIS DIN GB ISO |
| Tightening ntsia liaj qhov rooj | M24 M30 M39 |
| Tsim siab | Siab tshaj 20mpa, qis tshaj 10Mpa |
| Ua hauj lwm siab | Ib txwm 12.5 Mpa |
| MOQ | 1set ib |
| Pob | Polywood Case |
| Warranty | Ib xyoos |
| OEM | Yuav ua tau hloov |
I. Txoj cai ntawm kev ua haujlwm
Lub semi-welded phaj kub exchanger yog tsim los ntawm muab tso rau txhua ntawm ob corrugated daim hlau rov qab-rau-rov qab thiab laser vuam lawv ua ke raws li ib tug "lub thawv" raws li ib tug sealing zawj tsim rau lub gasket ntawm lub semi-welded PHE. Lub semi-welded daim hlau ntawm PHE yog tshwj xeeb tsim los rau corrosive media thiab qhov kev tsim kho no muaj ib lub welded foob ntawm ib sab thiab gasket foob rau lwm yam, tshem tawm cov kev pheej hmoo ntawm corrosion ntawm lub foob. Cov xov xwm rhiab heev los ntawm cov welded flow channels thiab cov pa tawm xov xwm ntws los ntawm cov pa ntws raws rau kev hloov hluav taws xob.
2. qhov zoo
1, Laser vuam muaj kev nyab xeeb thiab ua haujlwm zoo
Kev siv cov cuab yeej siv laser vuam paub tab, tom qab ntawd muab ntim nrog cov gaskets, kev ua haujlwm siab kub hloov pauv, lub neej ua haujlwm ntev, tsis yooj yim rau xau, yooj yim rau kev saib xyuas, kev nyab xeeb siab.
2, Cov khoom siv phaj kub thiab kub siab ua haujlwm
Semi-welded phaj kub exchanger phaj siv 304/316L / titanium phaj / hastelloy siab zog corrosion-resistant cov ntaub ntawv nias, tsis txhob ntshai ntawm corrosion thiab kub xov xwm, siab siab 5.0MPA.
3, Tsis muaj kev sib txuas cov roj hmab gasket tsim lub foob rau lub sijhawm ntev, siab corrosion kuj
Raws li cov neoprene sealing gasket muaj kev tiv thaiv corrosion siab, yog li lub laser ib nrab-welded phaj kub exchanger siv cov khoom no los ua cov khoom siv raw rau gasket, tsis muaj kev sib txuas rau nruab lub gasket nyob rau hauv ib qho tshwj xeeb tsim zawj, kom thaj tsam ntawm kev sib cuag. lub gasket thiab qhov nruab nrab yog txo kom tsawg, ncua nws cov kev pab cuam lub neej. Sealing gaskets kuj muaj qhov zoo ntawm kev ntxuav yooj yim thiab ua haujlwm zoo rau thermal stress.
4, Cim ntws channel tsim los txhim kho cua sov hloov
Txoj kev khiav dej num tsim tuaj yeem ua rau kom muaj zog turbulent ntawm cov xov xwm ntws mus rau hauv lub phaj kub exchanger, txhim khu cov nyhuv hloov tshav kub thiab txo cov kev poob siab. Txhawm rau ua kom tau raws li qhov yuav tsum tau ua ntawm kev ua haujlwm sib txawv, peb muaj ntau hom phaj xaiv los ntawm.
5, Adjustable loj kom yooj yim disassembly
Yooj yim disassembly, lub gasket tuaj yeem raug kaw phaj disassembly rau kev ntxuav lossis ntxuav lossis hloov phaj pawg. Yooj yim installation, yooj yim txij nkawm. tuaj yeem ntxuav thiab kho, lub neej ua haujlwm ntev, cov nqi khiav qis. Highly malleable thiab hloov tau yooj yim. Thaum tshav kub kub pauv tuaj yeem hloov kho los ntawm kev nce lossis txo cov phaj phaj.
3.Application industries
1, Cov tub yees, cua txias thiab HVAC kev lag luam: nws tuaj yeem siv ua evaporator gas subheater, kua subcooler, cua sov recycler, thiab lwm yam;
2, Tshuaj lom neeg kev lag luam: cua sov, txias, evaporation, condensation txheej txheem;
3, metallurgical kev lag luam: dov mills, nruam casting tshuab txias tshuab lubricating roj txias, circulating dej txias;
4, Hluav taws xob kev lag luam: roj transformer, turbine roj txias;
5, lub teeb textile thiab ntawv kev lag luam: khib nyiab roj, pov tseg kua khib nyiab siv hluav taws xob;
6, Cheeb Tsam centralized cua sov: chav dej cua sov, nruab nrab ntawm tshav kub hloov chaw, thib ob system dej cua sov;
7, kev lag luam kws tshuaj: dej rau kev txhaj tshuaj, plasma manufacturing.
Semi-welded phaj kub exchanger, yog dav siv nyob rau hauv cov zaub mov, tshuaj, dej hauv nroog, metallurgy, fais fab thiab tshuaj industries.
